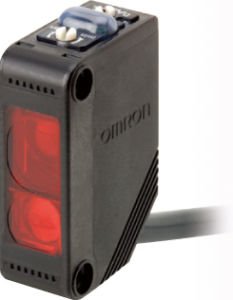

Omron E3Z-LS61 2M NPN 40-200MM Arka Plan Bastırmalı Sensör 2M Kablolu

%30
4.470,59 TL
6.386,55 TL
476,75 TL den başlayan taksitlerle!
Marka
Stok Kodu
E3Z-LS61 2M
Fiyat
142,40 EUR + KDV
Havale
4.336,47 TL (%3,00 havale indirimi)
Hızlı Gönderi
Stok Sorunuz
E3Z-LS61 2M Fotoelektrik sensör, arka plan bastırmalı, 40-200mm, DC, 3 kablolu, NPN, 2m kablolu

Shape Square type
Sensing method Distance-setting
Sensing distance 20 to 200 mm
Setting range White paper 100 x 100 mm: 40 to 200 mm
Black paper 100 x 100 mm: 40 to 160 mm
Detection range BGS: 20 mm to Setting distance (White paper, Black paper 100 x 100 mm)
FGS: Setting distance to 200 mm min. (White paper 100 x 100 mm), Setting distance to 160 mm min. (Black paper 100 x 100 mm)
Differential distance 10% max. of setting distance
Reflectivity characteristic (black-white error) 10% max. of setting distance
Light source Red LED (670 nm)
Power supply voltage 12 to 24 VDC±10% ripple (p-p) 10% max.
Current consumption 30 mA max.
Control output NPN open collector
26.4 VDC max.
100 mA max.
Residual voltage: 1 V max.
Operation mode Light-ON/Dark-ON selectable
Protective circuit Output short-circuit protection, Power supply reverse polarity protection
Response time Operate or reset: 1 ms max.
Sensitivity setting 5-turn endless adjustment
Ambient illuminance Incandescent lamp: 3,000 lx max.
Sunlight: 10,000 lx max.
Ambient temperature range (Operating) -25 to 55 ℃ (with no freezing or condensation)
Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating) 35 to 85 % (with no condensation)
Ambient humidity range (Strage) 35 to 95 % (with no condensation)
Insulation resistance 20 MΩ min. (500 VDC megger)
Dielectric strength 1000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection IEC: IP67
Connection method Pre-wired models (Cable length 2 m)
Indicator Operation indicator (orange), Stability indicator (green)
Weight Package: Approx. 65 g
Accessories Instruction manual
Material Case: Polybutylene terephthalate (PBT)
Lens: Denatured Polyarylate
