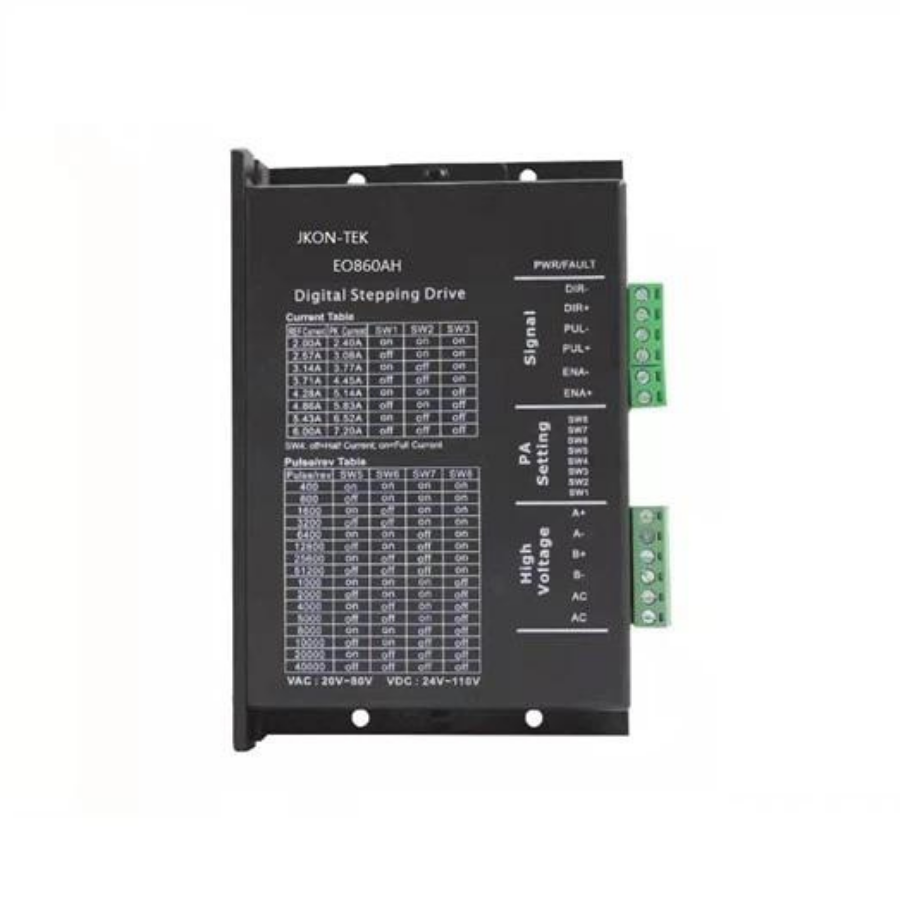

Jkon-Tek EO860AH 24-80V AC/DC 7.2A Step Motor Sürücü

Product Features:

1.Voltage:24V~80VAC or 24~110VDC,peak current 7.2A

2.Apply for magnetic linkage vector resonance resistance algorithm and electronic damping low-speed vibration arithmetic

3.Auto recognize motor parameters and auto tuning control parameters when power is on

4.Build-in micro-step segmentation algorithm, to achieve low micro-step control command, high micro-step operate effect

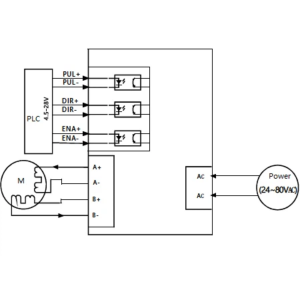

5.Receive differential and single-end PUL/DIR command

6.Control command Max pulse frequency is 500KHz(Default is 150KHz)

7.Provide 16 gears micro-step value setting

8. can customize 3 IO input control speed function

9.Reliable,signal port is optical isolation

10. Over-voltage, over-current, under-voltage protecting

DIP Description

EO series drive use 8 DIP to set micro-step ,running current and half/full current, below is the detail of model EO860AH:

Current Setting    Half/Full-Current  Micro-step setting

PRODUCT CURRENT SETTING:

Micro-step Setting:
