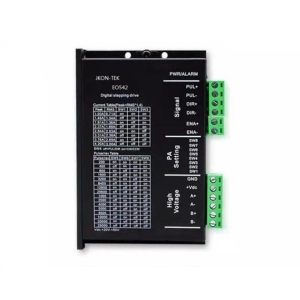

Jkon-Tek EO542 24-50VDC 4.2A Step Motor Sürücü

Product Features:

1.Voltage:24V~50VDC,peak current 5A

2.Apply for magnetic linkage vector resonance resistance algorithm and electronic damping low-speed vibration arithmetic

3.Auto recognize motor parameters and auto tuning control parameters when power is on

4.Build-in micro-step algorithm, to achieve low micro-step control command, high micro-step operate effect

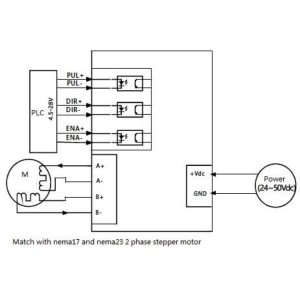

5.Receive differential and one terminal PUL/DIR command

6.Pulse,direction,enable signal port level compatible 4.5V~28VDC ,no need to connect external resistor

7.Set positive edge ,negative edge,one pulse or dual pulse and motor initial direction by serial port

8.Control command Max pulse frequency is 500KHz(Default is 200KHz)

9.Provide 15 gears micro-step subdivision value setting, to set 200~51200 any subdivision by Serial port

10.Have RS-232 and RS-485 serial port,can set or control drive parameters( selection)

11.Reliable,signal port is optical isolation

12. Over-voltage ,over-current ,under-voltage protecting

Product  Electrical Specification

Poduct DIP Setting

EO series drive use 8 DIP to set micro-step ,running current and half/full current, below is the detail of model EO542:

 Current Setting    Half/Full-Current  Micro-step setting

PRODUCT CURRENT SETTING:

Micro-step Setting:
