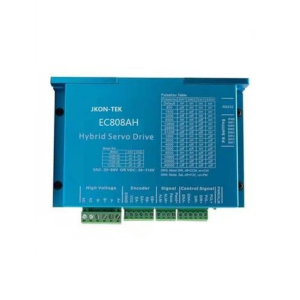

Jkon-Tek EC808AH 24-80V AC/DC 8-10A Step Motor Sürücü

Product Introduction:Easy Servo Drive EC808AH

EC808AH  Hybrid servo/easy servo drive (closed loop stepper drive ) is based on the latest DSP technology and advanced control algorithm of combing brushless servo and stepper systems. It combines favored features of both open loop stepper and brushless servo drives, solve the fatal problem “loss of steps” of open loop step systems ,improve the stepper motor high speed performance, and  motor & drive heating and noise are also significantly improved.

Compared with brushless servo systems, they have much higher starting and low-speed torque, high standstill stiffness, no hunting, no overshooting, almost zero settling time, and no tuning for almost all applications.

Product Features:

●Operation voltage：DC power supply input 24—110VDC or 24--80VAC,The recommended power supply is 68VDC,or 70VAC

●The max continuous output current is 8A,peak current is 10A

●Support pulse+direction and pulse+pulse command type
● Adopt advanced magnetic oriented control technology(FOC) and space vector PWM control technology (SVPWM)
●Adopt advanced variable current and variable frequency technology, it can reduce motor and drive heating and vibration.

●The microstep(pulse/revolution) can be set by protuner or DIP switches

● 0—5VDC analog input for speed mode,and support IO speed control function.(customized)

●Support over voltage,undervoltage,overcurrent,overload protections
●The max pulse frequency is 500KHZ,(the default is 200KHZ)
●The voltage of input pulse is 4.5vdc—28vdc, no need connect any resistor

●Support RS232 for protuner by PC(special cable ,please contact ECON technology for this cable)
●Work smoothly, high torque output at medium/high speed; fast response ,and low heating ,low vibration.

Product Diagram:

Product Mounting(unit：mm):

Product Function description:

DIP settings

Pulse/REV Table

SW5:Motor DIR,off=CCW,on=CW

SW6: Motor Selection,off=TC86,On=TC60

Mode Selection

Input Signal(C1)

Output Signal(C2)

Encoder Connection(C3)

Motor Connection(C4-A)

Power Supply (C4-B)

！Notice

A、The input power supply can not over AC80V

B、The command signal is 5V ,if it is more than 5V ,no need to connect resistor

C、When the Alarm light is on ,please power off and check

a. the power range is 24VAC---80VAC ；

b. the motor wiring and encoder wiring ,check is there any short
