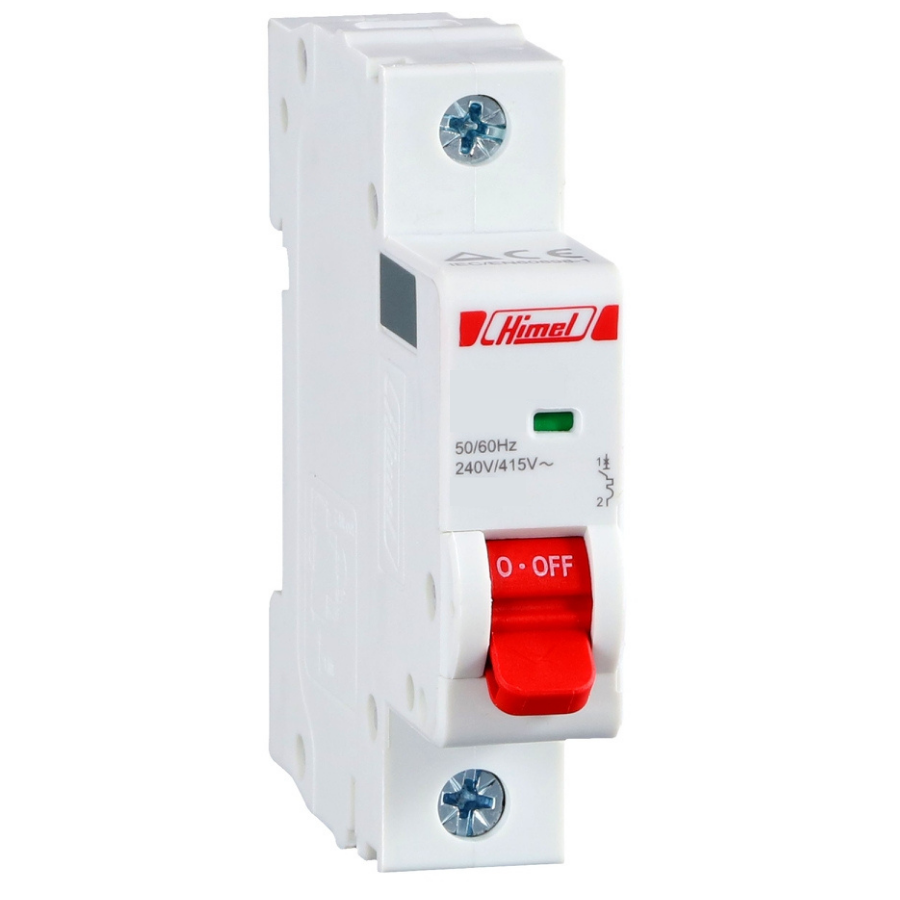

Himel HDB3WHL1C1 1X1A 4.5 kA C Tipi Otomatik Sigorta
%56
64,94 TL
147,60 TL
6,93 TL den başlayan taksitlerle!
Kategori
Marka
Stok Kodu
HDB3WHL1C1
Termin Süresi
Sorunuz
Fiyat
123,00 TL + KDV
Minyatür devre kesici HDB3WH - 18 mm AC - C - 1P - 4,5 kA - 1A
Main
Range of product
HDB3wH
Product or component type
Miniature circuit-breaker
Device application
Isolation
Control
Control
Trip unit technology
Thermal-magnetic
Suitability for isolation
Yes
Mechanical durability
20000.0 cycles
Electrical durability
7000.0 cycles
Complementary
Poles description
1P
[In] rated current
1 A
[Ue] rated operational voltage
240 V AC 50/60 Hz
Curve code
C
Magnetic tripping limit
5...10 x In
Breaking capacity
4.5 kA
[Ui] rated insulation voltage
250.0 V between phase and ground
[Uimp] rated impulse withstand voltage
4.0 kV
Cable entry
Top
Bottom
Bottom
Mounting support
35 mm DIN rail
Protection type
Overload protection
Short-circuit protection
Short-circuit protection
Overvoltage category
II
Connections - terminals
Forked type tag connectors
Clamping connection capacity
<= 25 mm²
Tightening torque
2.5 N.m
Height
80 mm
Width
17.7 mm
Depth
78.5 mm
Embedding depth
69.0 mm
Environment
Dielectric test voltage
2.0 kV 50/60 Hz 1 min
Shock resistance
30 gn (duration = 11.0 ms) for 3 shocks
Standards
EN/IEC 60898-1
IP degree of protection
IP20
Pollution degree
2
Ambient air temperature for operation
-20…60 °C
Ambient air temperature for storage
-40…70 °C
