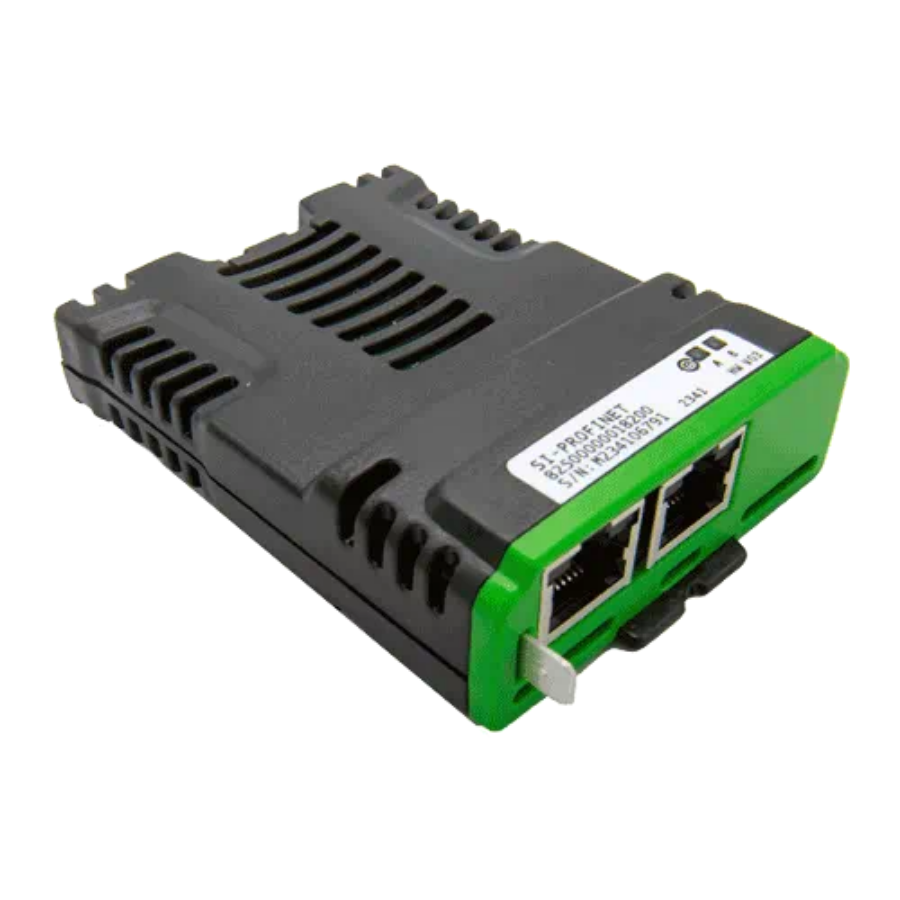

CT Nidec 82500000018200 SI-PROFINET Haberleşme Modülü

SI-PROFINET allows Control Techniques general purpose and servo drives to communicate and interface with PROFINET PLCs and networks.

Özellikler

• Dual 100 BASE-TX RJ45 connectors with support for shielded twisted pair, full-duplex 100 Mbps connectivity with auto crossover correction
• Integrated switches allow for use of line networks i.e. daisy chaining
• Both ports operate in full duplex mode as a network switch PROFINET Real-time class RT_Class_1 and conformance class A
• Cycle times from 2 ms to 512 ms specified during configuration
• Automatic device replacement using the LLDP and DCP protocols
• LED indication of network port activity
• Up to 64 cyclic I/O module slots (maximum of 32 in and 32 out) configured by network configuration tool and GSDML file Identification and maintenance functions I&M0 to I&M4 supported

Sürücü Uyumluluk

• Unidrive M
• Commander C
• Digitax HD
• Pump Drive F600
• HVAC Drive H300
