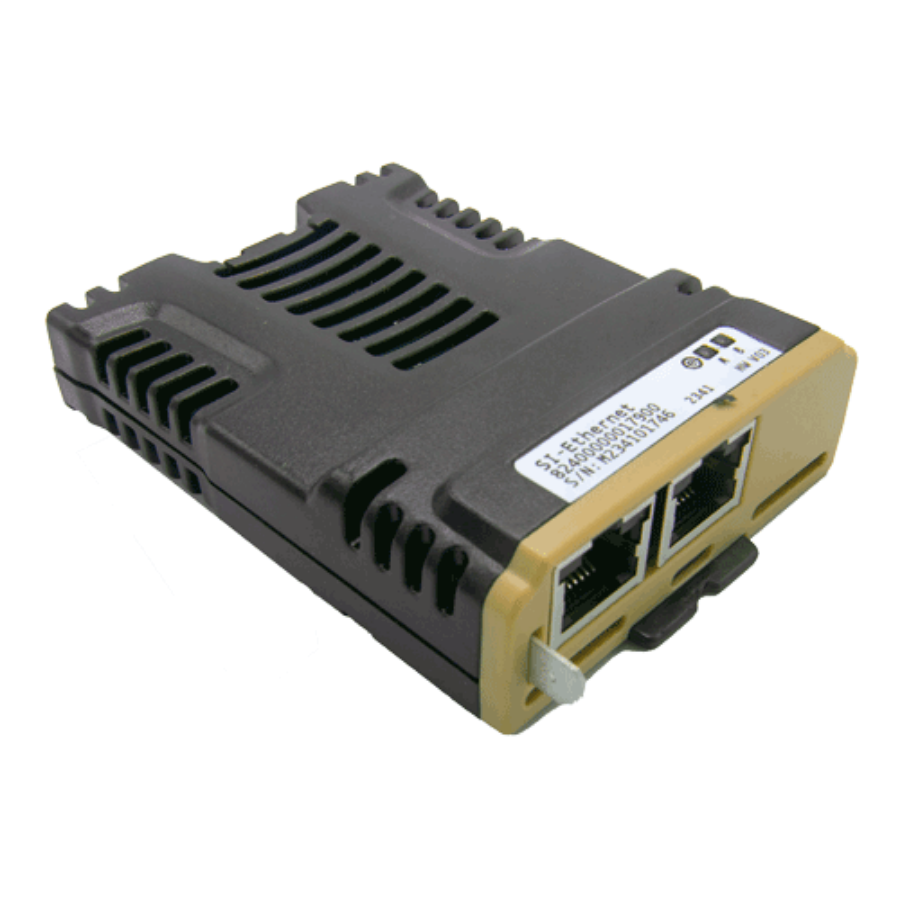

CT Nidec 82400000017900 SI-Ethernet Haberleşme Modülü

SI-Ethernet supports real-time Ethernet (IEEE 1588 V2 Precision Time Protocol), HTTP, SMTP, EtherNet/IP and Modbus TCP/IP.

The module can be used to provide high speed drive access, global connectivity and integration with IT network technologies, such as wireless networking.

Özellikler

• Real-time Ethernet (IEEE 1588 V2 Precision Time Protocol), Modbus TCP/IP, EtherNet/IP
• Network synchronization of less than 1 μs jitter (typically <200 ns)
• 1 ms cycle time for synchronous cyclic data
• Bandwidth protection through a network gateway that manages non-real-time Ethernet messages
• Master/follower and peer-to-peer communications capabilities
• Addressing is IP based Dual 100 BASE-TX RJ45 connectors with support for shielded twisted pair, full-duplex 100 Mbps connectivity with auto crossover correction
• Integrated switches allow for use of line networks i.e. daisy chaining
• Both ports operate in full duplex mode as a network switch
• LED indication of network port activity

Sürücü Uyumluluk

• Commander C
• Digitax HD*
• Unidrive M
• Elevator Drive E300
• Pump Drive F600
• HVAC Drive H300

*Digitax HD M750 features Ethernet onboard.
