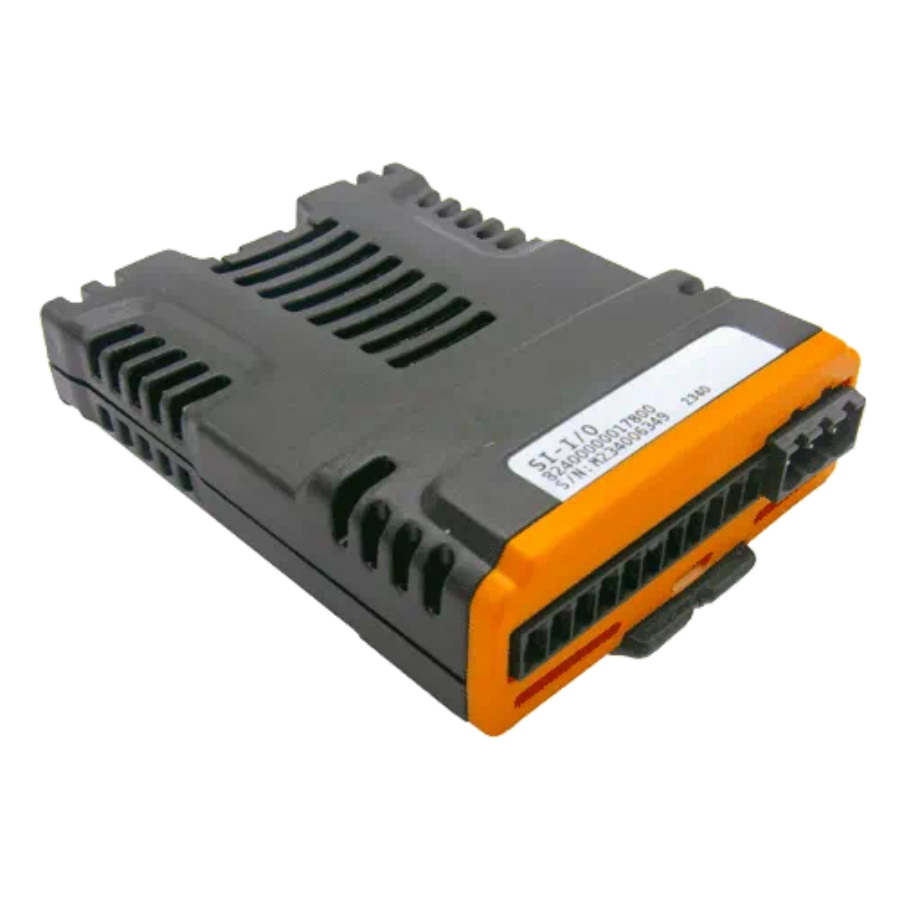

CT Nidec 82400000017800 SI-I/O Sürücü Giriş Çıkış IO Modülü

Our extended I/O interface module increases the number of I/O points on a drive. All connections from the option module to the drive are made via the drive connector. Connections from external equipment to the SI-I/O are made via a 3-way pluggable screw connector for the two relays and an 11-way pluggable screw connector for the digital and analogue I/O.

Features

• 4 x Digital inputs/outputs
• 3 x Analogue inputs (default) / Digital inputs
• 1 x Analogue output (default)* / Digital input 2 x Relays

Drive compatibility

• Unidrive M
• Digitax HD
• Commander C
• Elevator Drive E300
• HVAC Drive H300
• Pump Drive F600
