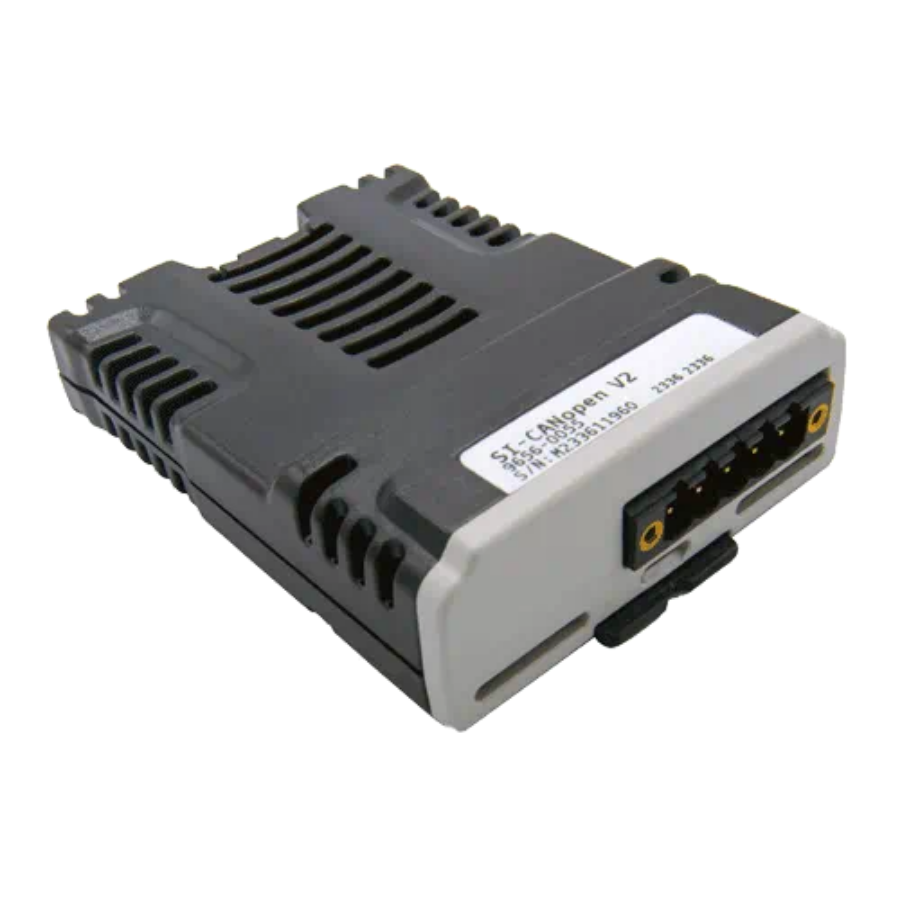

CT Nidec 82400000017600 SI-CANopen Haberleşme Modülü
%35
0,00 TL
0,00 TL
Kategori
Stok Kodu
82400000017600
Fiyat
0,00 EUR + KDV
Havale
0,00 TL
(%3,00 havale indirimi)
Our CANopen interface module supports various profiles including several drive profiles. SI-CANopen has been designed to offer optimum flexibility: in particular the process data objects (PDO) numbering system has been specifically designed to offer maximum versatility while maintaining conformance to CiA specifications.
Özellikler
- Supported data rates (bits/s): 1 M, 800 k, 500 k, 250 k, 125 k, 100 k and 50 k
- 4 transmit and 4 receive PDOs A, B, C and D supported
- Independently configurable transmit and receive PDO numbers (1-511) for maximum application flexibility
- All synchronous and asynchronous PDO communication modes supported
- Total of 32 bytes (16 words) in each direction using PDOs (4 TxPDOs of 64 bits and 4 RxPDOs of 64 bits)
- Service Data Objects (SDO) provide access to all drive and option module parameters
- Consumer heartbeat
- Emergency message completed flag
- RxPDO, SYNC and missed heartbeat event handling
- RxPDO event triggers
- TxPDO event triggers
- Object association for un-defined DSP-402 objects
- +24 V back-up power supply capability
Sürücü Uyumluluk
- Unidrive M
- Commander C
- Digitax HD
- Elevator
- Pump
- HVAC Drive
