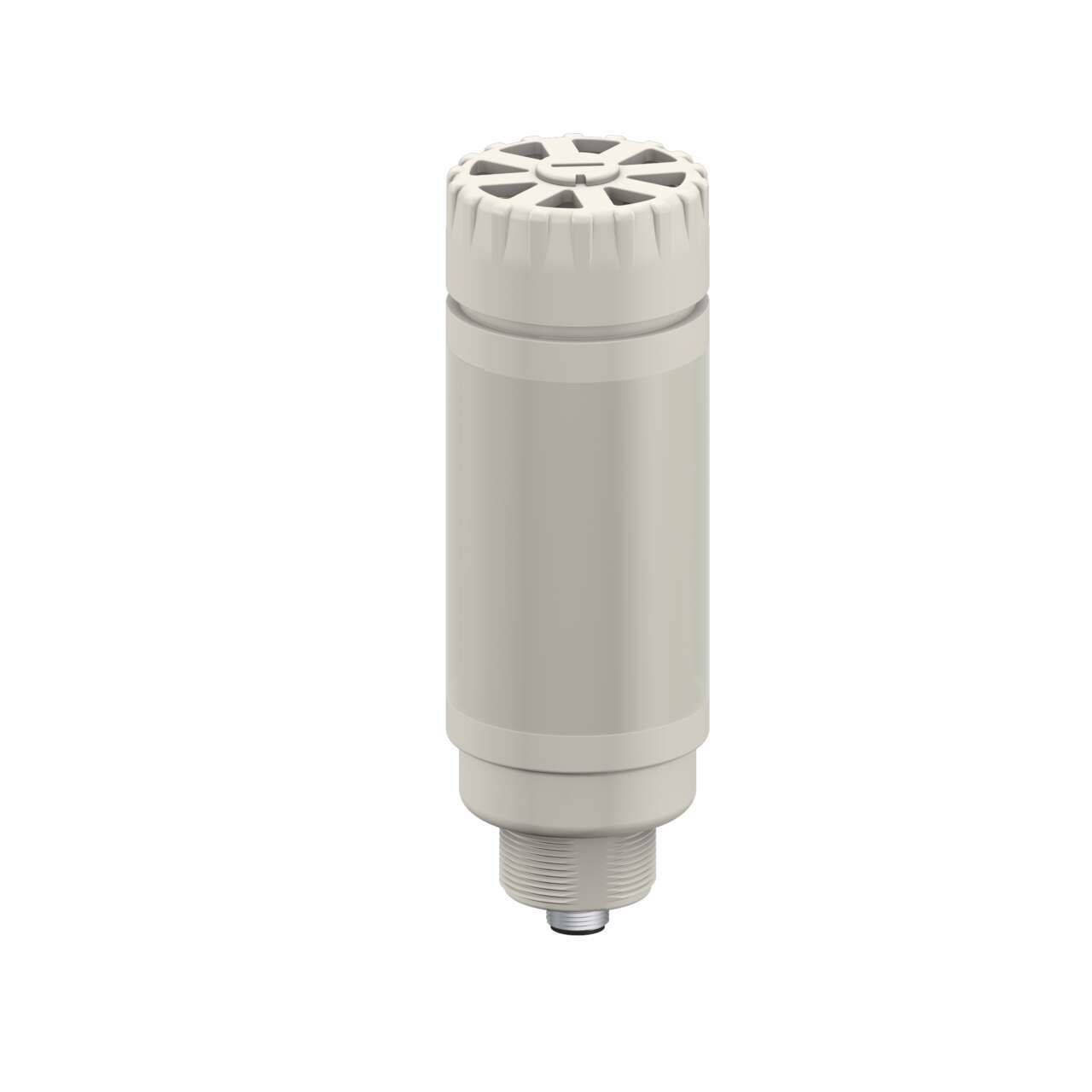

Column Light: Gray Housing: 3-Color Audible Indicator
Voltage: 18-30 V dc; Environ. Rating: IP50
Input: PNP; Colors: Green Red Yellow
5-pin M12 Integral QD
Part Number: 15229
PowerDC
IP RatingIP50
DisplayNo
NEMA / UL Type RatingNEMA and UL 13
Housing StyleBase Mount - Tower
Primary Housing MaterialABS/Polycarbonate
IndicationYes
Mounting ThreadM30 x 1.5
Color Input ControlIndividual (One wire/color, same number of colors as input wires)
Number of Colors3
Product Size (mm)50
Color TechnologyStandard LED
Color Option 1Green
Animation Option 1Solid On
ConnectionIntegral QD
Quick Disconnect TypeM12
Lumens Color 172.0
Color 1 - Wavelength/Color Temp/Coordinates525 nm
Color Option 2Red
Animation Option 2Solid On
Lumens Color 238.0
Color 2 - Wavelength/Color Temp/Coordinates625 nm
Color Option 3Yellow
Animation Option 3Solid On
Lumens Color 330.0
Color 3 - Wavelength/Color Temp/Coordinates590 nm
Max Current Color (mA)100
Number of Input Pins/Conductors5
Supply Voltage18-30 V dc
Audible Alarm TypeContinuous
Input TypePNP
Max Audible Intensity (db at 1m)92
Min Audible Intensity (db at 1m)62
Audible Operating Frequency (kHz)2.7
Max Input Response Time (ms)10
Max Current - Audible Alarm (mA)25
Physical Dimensions (LxWxH or DxH mm)50.0 x 145.3
Environmental RatingIP50
Max Op. Relative Humidity Non-Condensing (%)95% @ 50°C
High Temperature (up to 100° C)50
Min Op. Temperature (°C)-20
Primary Housing ColorGray
Primary Window MaterialPolycarbonate Diffused
Feature: AudibleYes
Multi-Color DeviceSingle Color On
Feature: Quick DisconnectYes
